Testing the RBD algorithm for data coompression

clear all
close all
[X,Y] = meshgrid(-1:0.0004:1,-1:0.0004:1);

Exact decomposition for tensorial function

For an example, RBD decomposes the following three functions exactly.

$$\sin(\pi x)\cos(\pi y)$$

$$\sin(\pi x)\cos(\pi y)+0.1\sin(10\pi x)\cos(10\pi y)$$

$$\sin(\pi x)\cos(\pi y)+0.1\sin(10\pi x)\cos(10\pi y)+0.01\sin(100\pi x)\cos(100\pi y)$$

Z = sin(pi*(X)).*cos(pi*(Y));        % need 1
[Z1, Z2] = RBD(Z,1e-13,22);
max(max(abs(Z1*Z2 - Z)))

Z = sin(pi*(X)).*cos(pi*(Y)) + 0.1*sin(10*pi*(X)).*cos(10*pi*(Y)); %need 2
[Z1, Z2] = RBD(Z,1e-13,22);
max(max(abs(Z1*Z2 - Z)))

Z = sin(pi*(X)).*cos(pi*(Y)) + 0.1*sin(10*pi*(X)).*cos(10*pi*(Y)) + 0.01*sin(100*pi*(X)).*cos(100*pi*(Y)); %need 3
[Z1, Z2] = RBD(Z,1e-13,22);
max(max(abs(Z1*Z2 - Z)))

Reduced system getting singular - to stop with 1 basis functions

ans =

   4.3299e-15

Reduced system getting singular - to stop with 2 basis functions

ans =

   3.9968e-15

Reduced system getting singular - to stop with 3 basis functions

ans =

   1.7875e-14

Approximate decomposition

As an example, we test it on the following non-tensorial nonlinear function having multiple scales

$$f(x,y)=0.6f_1(x,y)+0.1f_2(x,y)+0.01f_3(x,y)$$

with:

$$f_1(x,y)=\sin(\pi(x+2y))\cos(\pi(2x-y))$$

$$f_2(x,y)=\sin(10\pi(x-3y))\cos(10\pi(3x+y))$$

$$f_3(x,y)=\sin(3\pi x^2y)\cos(6\pi\frac{\sqrt{|x|}}{y+2})$$

Z = 0.6*sin(pi*(X+2*Y)).*cos(pi*(2*X-Y)) + 0.1*sin(10*pi*(X-3*Y)).*cos(10*pi*(3*X+Y)) + sin(pi*(3*X.^2.*Y)).*cos(pi*(6*sqrt(abs(X))./(Y+2)));

tic
[Z1, Z2] = RBD(Z,1e-13,22);
t_R = toc;

tic
[U,S,V] = svds(Z,22);
t_S = toc;

Efficiency and accuracy of RBD

The RBD is 16 times faster than SVD for this data set.

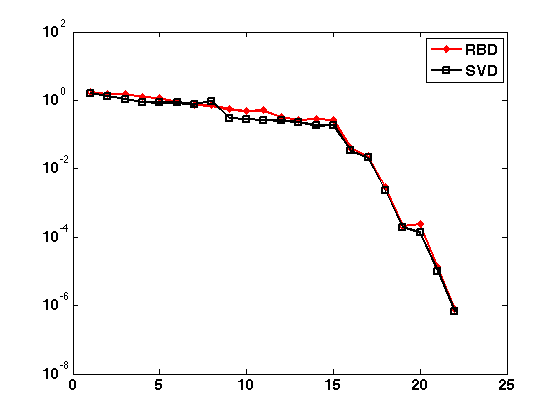

More importantly, we plot the accuracy of the two methods as the size of the compressed space increases. And we observe that they have similar accuracy.

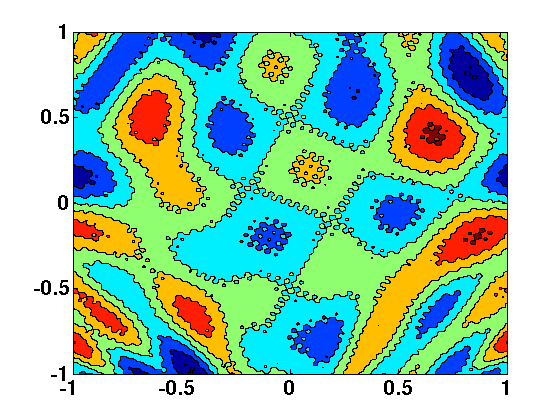

We also visualize this nontrivial dataset by plotting the contour plot of $f(x,y)$

fprintf('The SVDs time over the RBD time is %f\n',t_S/t_R);

error = zeros(22,2);
for j=1:22
    tm1 = Z1(:,1:j)*Z2(1:j,:);
    tm2 = U(:,1:j)*S(1:j,1:j)*V(:,1:j)';
    error(j,1) = max(max(abs(tm1 - Z)));
    error(j,2) = max(max(abs(tm2 - Z)));
end
plot(1:22,error(:,1), '-rd','LineWidth',2);
hold
plot(1:22,error(:,2), '-ks','LineWidth',2);
legend('RBD','SVD');
set(gca,'fontsize',15,'fontweight','bold','yscale','log');

Zred = Z1*Z2;
figure
contourf(X,Y,Zred)
set(gca,'fontsize',20,'fontweight','bold')

The SVDs time over the RBD time is 15.200370
Current plot held


Published with MATLAB® R2014a

RBD

Contents

function [bases, TransMat] = RBD(data, tol, col, NormMat, StartingVec)

Reduced basis decomposition

This function approximate a matrix (data) by a product of two matrices (bases and TransMat) with the column space of the first matrix approximating that of the input matrix.

There are multiple ways to call it as you can specify from 1 to 5 inputs

RBD(data), RBD(data,tol), RBD(data,tol,col) etc

% Inputs:
%
% Provide only the first three unless you understand what you are doing
%
% * data => the data matrix you want to decompose
% * tol  => the accuracy you desire of your decomposition
% * col  => the number of columns you can afford to have in the compressed
%           matrix
% * NormMat => A SPD matrix if you wish to use a different norm to measure
%           the error
% * StartingVec => The vector you wish to use to start the greedy algorithm
%
% Outputs:
%
% bases*TransMat $\approx$ data
%
% * bases    => the "compressed" matrix (to be more accurate, the group of vectors spanning
% approximately the column space of data)
% * TransMat => the "transformation" matrix
%
% Author: Yanlai Chen
%
% Version: 1.0
%
% Date: 03/20/2015

Error Checking

We provide values to those inputs that are not supplied

if(nargin<1)
    error('RBD needs at least one input, a matrix')
end

if (nargin == 1)
    tol = 1e-6;
    col = min(10,size(data,2));
    TrueE_NoR = 1;
    StartingVec = 0;
elseif(nargin == 2)
    col = size(data,2);
    TrueE_NoR = 1;
    StartingVec = 0;
elseif(nargin == 3)
    TrueE_NoR = 1;
    StartingVec = 0;
elseif(nargin == 4)
    TrueE_NoR = 0;
    StartingVec = 0;
else
    TrueE_NoR = 0;
end

Praparation of the algorithm

nr = size(data,1);
nc = size(data,2);

bases = zeros(nr,col);

TransMat = zeros(col,nc);
xiFlag=zeros(1,col);
xiFlag(1) = randi(nc);
i=1;
CurErr = tol + 1;

% Preparation for efficient error evaluation
ftf = sum(data'.*data',2);
AtAAtXi = zeros(nc,col);

if(TrueE_NoR == 0)
    AtAAt = data'*NormMat;
    XitAAtXi = zeros(col,col);
    tM = data'*NormMat;
% a very fast way to evaluate ftf(j) = data(:,j)'*AAt*data(:,j);
    ftf = sum(tM.*data',2);
end

The RBD greedy algorithm

while (i <= col) && (CurErr > tol)

    if((i==1) && norm(StartingVec) > 1e-6)
        biCand = StartingVec;
    else
        biCand = data(:,xiFlag(i));
    end

Inside: Gram-Schmidt orthonormalization of the current candidate with all

previsouly chosen basis vectors

    for j=1:i-1
        biCand = biCand - (biCand'*bases(:,j))*bases(:,j);
    end
    normi = sqrt(biCand'*biCand);
    if(normi < 1e-7)
        fprintf('Reduced system getting singular - to stop with %d basis functions\n',i-1);
        bases = bases(:,1:i-1);
        TransMat = TransMat(1:i-1,:);
        break
    else
        bases(:,i) = biCand/normi;
    end
    TransMat(i,:) = bases(:,i)'*data;

Inside: With one more basis added, we need to update what allows for the

efficient error evaluation.

    if(TrueE_NoR == 0)
        AtAAtXi(:,i) = AtAAt*bases(:,i);
        XitAAtXi(i,1:i) = bases(:,i)'*NormMat*bases(:,1:i);
        XitAAtXi(1:i,i) = XitAAtXi(i,1:i)';
    else
        AtAAtXi(:,i) = data'*bases(:,i);
    end

Inside: Efficiently go through all the columns to identify where the error would

be the largest if we were to use the current space for compression.

    TMM = TransMat(1:i,:);
    te1 = sum(AtAAtXi(:,1:i).*TMM',2);
    if(TrueE_NoR == 0)
        tM = TMM'*XitAAtXi(1:i,1:i);
    else
        tM = TMM';
    end
    te2 = sum(tM.*TMM',2);
    errord = ftf - 2*te1 + te2;
    [CurErr,TempPos] = max(errord);

% Mark this location for the next round
    if(i < col)
        xiFlag(i+1) = TempPos;
    end
% If the largest error is small enough, we announce and stop.
    if(CurErr <= tol)
        fprintf('Reduced system getting accurate enough - to stop with %d basis functions\n',i);
        bases = bases(:,1:i);
        TransMat = TransMat(1:i,:);
    else
        i = i+1;
    end

end

end
